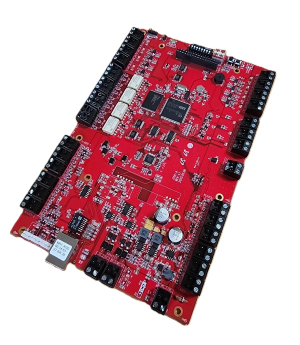

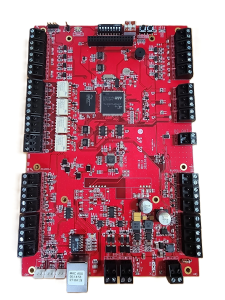

Up to 4 Door Access Control Panel (EIO88-X Expansion Board Required for Controlling 3~4 Doors)
|
|
•
|
iTDC-X(2 Door) + EIO88-X Expansion Board = MAX 4 Door
|
|
•
|
Up to 100,000 User IDs / Up to 100,000 Event Buffers
|
|
•
|
Automatic System Reset via Self-Diagnosis (Watchdog Function)
|
|
•
|
Up to 15 Input Ports / Up to 15 Output Ports (With EIO88 Expansion Board)
|
|
•
|
Optimized Communication Function
|
|
• |
Door Opening Time Configurable per User
- The door opening time is configurable by users, which is suitable for disabled or aged users
|
|
•
|
Door Opening and Closing Monitoring
|
|
•
|
Real-Time Monitoring of Access Door Status / User Access Status / Alarm Status using the Management Software
|
|
•
|
Anti-Passback Function / Duress Mode / 2-Men Operation Function
|
|
•
|
Arm/Disarm Function
|
|
• |
2-Status Input Check (On/Off)
|
|
•
|
Time Schedule Configuration
|
|
•
|
Alerts when Door Opening Time Exceeds and Forced Door Open
|
|
•
|
Designed to Withstand ESD(Electro Static Discharge) Shock
|
|
• |
Supports the EIO88-X (Expansion Board)
- 8 Inputs, 8 Outputs
- Required for Controlling 3~4 Doors
|
|
• |
Manual Configuration Available for Standalone Operation
|
|
• |
RS232 / RS422 / Ethernet Communication
|
|
•
|
Compatible Software : IDTECK STANDARD
|
