Home > Product > Hardware > Access Control Panel > iTDC
 Intelligent Multi-Door [4] Access Control Panel for Access Control System
iTDC


add to wish list
product order





High Stability

* Self-testing feature for Self-Recovery
In case of the system failure, iTDC tests itself to find the problem and recovers the system. iTDC system does not fail in any environment.

* Protection from ESD
Power and ground have been separated to protect the device from ESD.




Unprecedented Scalability

* Integration with Other Security Systems
iTDC can be integrated with other security systems such as CCTV, fire alarm, BAS and other systems to configure total security system.

* 30 Input/Output Ports to Control up to Four Doors
Seven input ports, seven output ports and four readers are embedded to connect with variety of sensors, alarms and other devices. In case of adding EIO88 extension board, the total numbers of input and output ports increase to eight each, which makes it total of 30 input and output ports. (EIO88 Optional)

* Connect up to 255 iTDCs Together
Using the network communication, 255 iTDCs can be connected together to configure medium or large size system.




Fast and Reliable Communication

* Optimized Communication Function
Depending on the network status, the communication spend is alternated to maintain reliable communication feature.

* Variety of Communication Function
Using either serial or TCP/IP communication, it provides reliable network system. Also using the multi-port feature, network and serial communication can be used together. (Internal TCP/IP Module Optional)




Convenience to Use

* Door Opening Time Configurable per User
The door opening time is configurable by users, which is suitable for disabled or aged users.

* Monitoring of Door Opening and Closing
Using the management software, it allows real-time monitoring and control of door opening and closing of the whole system.




Easy Installation

* Simple Access Control System Configuration
For the areas where the system configuration difficult, standalone access control system can be configured just by connecting keypad and LCD panel to the controller.




One of a Kind Security Features

* Two Men Operation
This function is used to manage the visitors. The visitors are only accessible when accompanied by authorized administrator. The doors are opened when two registered cards are read together.

* Anti-Passback
This function is used to prevent any entry or exit of unauthorized users by allowing exit only when proper identification is authorized.

* Duress Mode
This function is used to notify a dangerous situation or in case of the situations where the users are forced by thieves or criminals to open the door. Using the duress mode, the user can enter the two digit pre-configured duress mode code and the door will open as usual, but it generates the duress alarm output, which activates alarm event to be notified by e-mail or SMS messaging.

* ARM/DISARM
This function is used to increase the security level by denying the access if the administrator is not present. If the system is armed by the administrator, none of the access is granted, unless the system is unarmed by the administrator.

* Disconnection Check
This function self detects whether the devices connected to the controller are sending normal signal, if not it can be confirmed using the software.





----------------------------------------------------------------------------------------------------


• Intelligent Multi-Door [4] Access Control Panel for Access Control
System (EIO88 required to control 3 and 4 Doors)
• Dynamic Control of Memory up to 50,000 Users / up to 29,500 Event
Buffers :
- 1,000 ~ 20,000 / 30,000 / 40,000 / 50,000 Users
- 20,000 ~ 29,500 / 3,000 / 8,000 / 14,000 Event Buffers
• Standalone/Network Communication via RS232 / RS422 / RS415
(Max.255ch), TCP/IP (Internal TCP/IP Module required (optional))

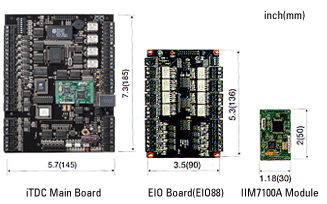

• Expansion I/O Board available (EIO88: 8 Inputs / 8 Outputs)
• Independent 7 Inputs and 7 Outputs including 4ea of 2 Form-C Relay
Outputs
• 4ea of Reader Port for Anti-passback Function :
26bit Wiegand and 4 / 8bit Burst for PIN
• 2 Men Operation
• ARM / DISARM Function for Alarm Panel
• 2 Levels Individual Door Opening Time Setting available for
handicapped person
• Remain ID & Event Data and Setting Value in case of Electric Outage
• Optional LCD display and Keypad connectable to control for
Standalone Operation, Manual Setting
• Duress Mode Function
• Guard Tour Management
• Spervised Reader Signal Check
• Alarm Event Monitoring using Tamper Switch
(by Application Software)
• Communication Status via LED Indicator
• Options: LCD display, Keypad (for standalone, manual setting)
Internal TCP/IP Module, Expansion I/O Board
• Compatible Software: STARWATCH iTDC PRO I / II
