Total Security System

Home > Business > Application > Total Security

IDTECK's Total Security System is a comprehensive set of technologies and services that provides complete physical protection. IDTECK takes pride in the product and service capability to help you implement a total security system that is just right for your needs. IDTECK's approach to providing a Total Security System is based on our guarantee that our products and technologies are effectively and efficiently structured to achieve the maximum security level for your business/organization.

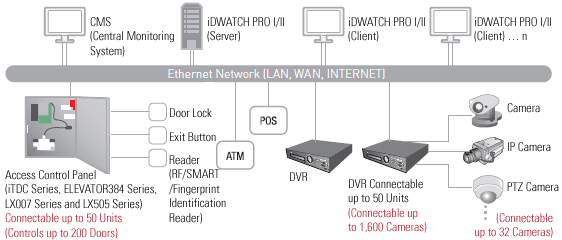

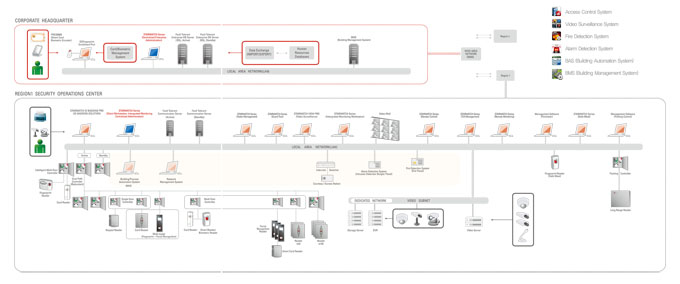

Total Security System SI-configuration



IDTECK's cutting edge technologies and wide range of products provide perfect physical protection needs for enterprise today.





Special Solutions to Optimize Security System

- Lobby Gate

- Elevator Control

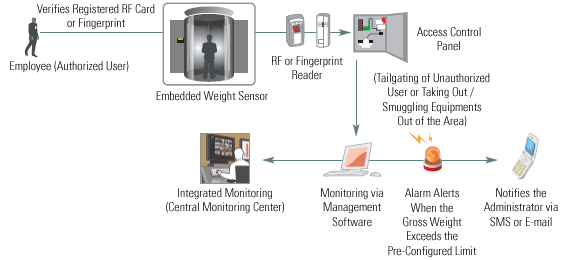

- Special Door (Inter-Lock System)

- Visitor Control

- IBS Interface

- Tracking System

- Personal Tracking System

- Guard Tour System

- Perimeter System

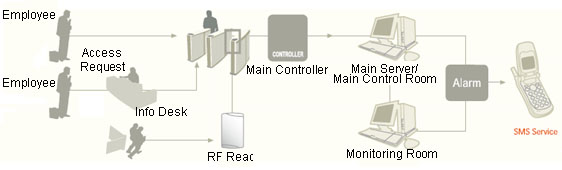

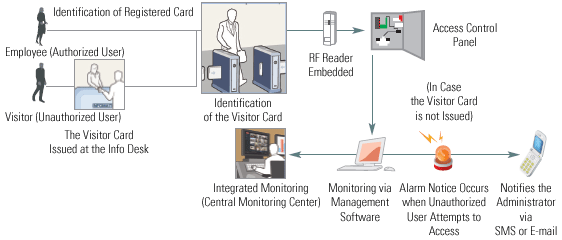

Lobby Gate



■ To increase security level interoperating with access control system limiting unauthorized personnel

■ To maximize efficiency through quick processing of a large group of people

■ For effective control of employees and visitors

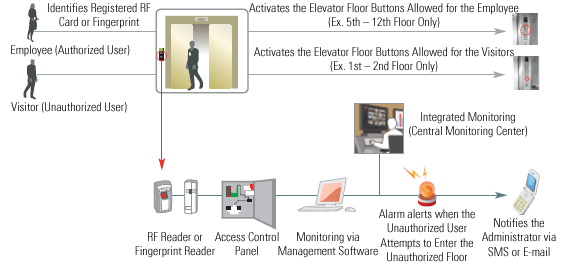

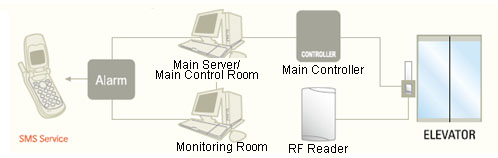

Elevator Control



- To limit the use of elevator from strangers by inactivating floor buttons

- Authorized users present card to the card reader in the elevator to activate floor buttons

- To make a rapid action by sending secret/silent alarm signal to center in case an intruder duresses an authorized user to use the elevator

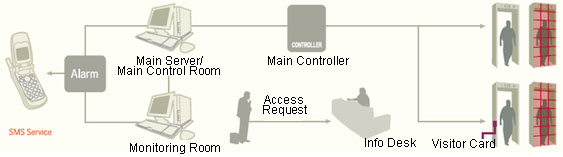

Visitor Control



■ Security check box (Airport, R&D center, court etc)

: in main access point of building or other critical points that need high security control, it searches for people with arms for the building safety and security

■ Visitor management system

- All visitors must register in reception

- All visitor present personal ID card to have visitor card

- It records personal information of all visitors in order to track the visitor in case of accident

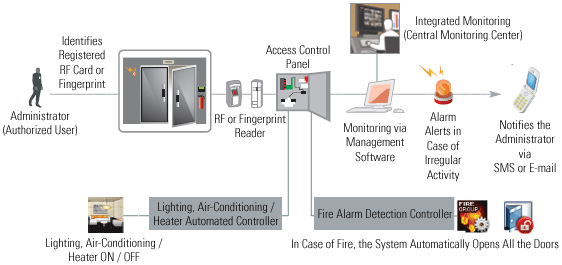

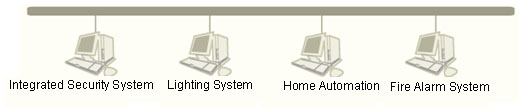

IBS Interface



■ Electricity ( light ) system

- With first access event, it lights on automatically and lights off with last exit event

■ Automation system

- Air conditioner and heater on/off automatic control by first access event and by last exit event

■ Fire system

- In case of fire, it automatically opens all or pre defined group of doors

- For emergency case, it allows to open door manually with emergency button

- It supports remote door open from outside of building via software





Tracking System



- It is to track a person or a material using RF tag like a LPS system

- In emergency, it enables immediate action

- It is to increase security tracking visitors activities in the building

- It maximizes efficiency in building management interoperating with light, automation, electricity and other system

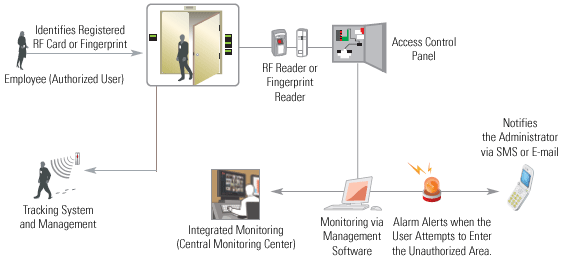

Personnel Tracking System



- Using in/out reader with APB function, it provides information of each individual's location in the building

- It find dropped person with auto person counting

- Energy saving with building control by person's presence of each place

- Management labor cost reduction

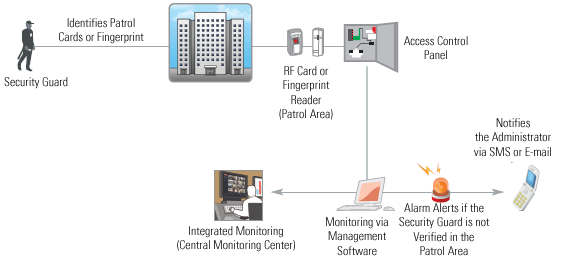

Guard Tour System



- Efficient guard tour control checking tour status with location in real time

- Various report by date, month and year with statistics

- Simultaneous access control for guards and for strangers

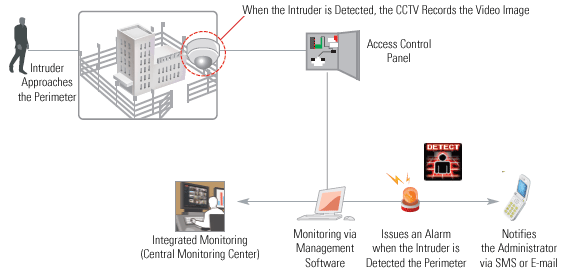

Perimeter System



- Perimeter system for factory, research center, military, essential facilities and more

- Tension based fence type perimeter system

- Prevent critical company information outflow (research paper, business data, etc)

- Integration with CCTV








Checklist for System Configuration
Configuration Check Point
Object Select the system which will be operated totally
Operation Select how and who will operate the system
User and Manual Check the actual users and user's manual
Capacity Check the capacity of all related parties (manufacturer, installer, contractor, etc)
Basic Data Data which will be used to operate the system
Event Data Data which is created upon system operation
Data Management How to manage and save data (RDBMS, DBMS, general file, etc)
Network Network which is supported by the system
(LAN, RS232C, RS422, RS485, Fiber Optic, etc)
System Protocol Protocols used in the system (TCP/IP, UDP, IPX/SPX, etc)
User Protocol The promise in program to connect each data
Interface Interface to be used for data transmission
Data usage Usage of related data and select the range/object of application program
Data backup and reliability Emergency operation in case of system down and all related systems must be stabilized
Checklist for System Interface
Configuration Check Point
Security System
  • Personal tracking and collect data who is in the room
  • Control access door (Remote Open / close, Open / Close always)
  • Anti pass back
  • Duress mode
Fire Protection
  • System and controller interface
  • Select restrict area
  • Object : Fire, Gas, water leakage, etc
  • Output : alarm, bell, lamp, siren, etc
Building Automation
  • Control : Power, Light, etc
  • Select restrict area
System
  • Communication (LAN, RS232C, RS422, etc)
  • User Protocol
Human Resource
Management
  • Data collection
  • Communication (LAN, RS232C, RS422, etc)
  • Data connection (S/W, DB connection)
  • Set User protocol
  • Interface
Parkingsystem
  • Interface
  • Communication (LAN, RS232C, RS422, etc)
  • User Protocol
CCTV system
  • Equipment capacity
  • Set restrict area and coding
  • Interface
  • Various sensors and control light
